Digital Weightlessness Scale Feeder High Precision

Product Details

رقم النموذج:

تعديل السرعة:

متغيرة السرعة

يكتب:

التغذية المسمار خسارة في الوزن

الاستخدام:

مواد البناء والصناعة الكيميائية والكوليري وحقل الحصى والمعادن والزينة والتهوية

مادة:

الفولاذ المقاوم للصدأ 304/316

معدل الدقة:

تعتمد على النموذج

سعة المغذية:

0.1 ~ 6000 (L/H)

قوة:

تعتمد على النموذج

حزمة النقل:

صندوق خشبي

مواصفة:

تعتمد على النموذج

علامة تجارية:

زيغوتا

أصل:

الصين

رمز HS:

8477900000

القدرة الإنتاجية:

500 مجموعة/شهر

Payment & Shipping Terms

الحد الأدنى لكمية

Product Description

Loss-in-Weight Feeder Products

·Product Description

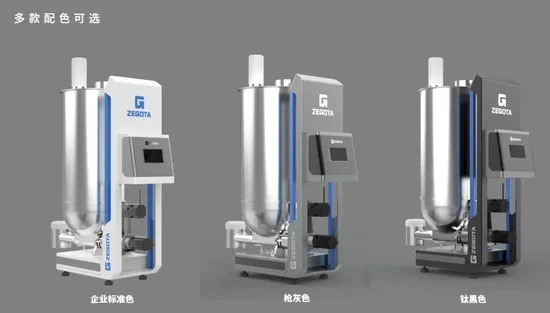

The new series of weightlessness scales launched by Zhejiang Zegota Precision Technology Co., Ltd. utilizes leading dynamic control technology and is equipped with a dynamic weighing controller developed by a professional R&D team specifically for weightlessness scales. The controller controls the feeding flow rate by adjusting the operating speed of various actuators such as screws, vibrating feeders, and pumps in real time. It is also known as a constant flow feeder and is widely used in continuous feeding production lines in industries such as rubber and plastic environmental protection, chemical, food, and non-ferrous steel. This product not only improves the accuracy, stability, and reliability of feeding, but also significantly enhances the operational efficiency of the factory, reduces the labor intensity of workers, creates more economic benefits for the enterprise, overturns the traditional manual batching mode, and has profound milestone significance in the history of batching development.
Digital weightlessness scale is a high-precision weighing device designed based on the principle of weightlessness, widely used in industrial, laboratory, and commercial fields, especially in weighing suspended items or special scenarios with obvious advantages.

·Product advantage

1. The industry-leading proprietary dual motor direct rotation mechanism and screw structure ensure stable and tight filling of materials during the feeding process, effectively avoiding phenomena such as material blockage and agglomeration.

2. The straight silo structure prevents the silo material from sticking to the wall; The optimal clearance between the screw shell and the mixing mechanism shell ensures low residue of the material.

3. Adopting a three-stage sealing structure improves the reliability of the seal and the service life of the sealing components.

4. The overall modular design, quick disassembly structure, and easy maintenance have reduced the operating costs of the equipment.

·Main Components
1.Hopper
Made of stainless steel, designed to prevent corrosion and adhesion, ensuring smooth material flow.
2.Single-Screw Feeder
Adjustable speed ensures uniform and stable material flow.
3.High-Precision Weighing Sensor
Monitors the total weight change of the equipment in real-time for accurate loss-in-weight calculations.
4.Control System
Includes a touch screen or other human-machine interface (HMI) for parameter settings, alarm functions, and data export.
5.Drive System
The motor drives the screw rotation with variable frequency control capabilities.

·Product Details

Technical Data Sheet

Type	Z10	Z16	Z22	Z28	Z38	Z46	Z64
Feed rate(L/H)	0.1~10	3~10	10~100	10~400	10~400	60~3000	400~600
hopper capacity(L)	6	6	30	40	50	50	400
Accuracy(±g)	±0.01g	±0.5g	±1g	±0.5%	±0.5%	±0.5%	±0.5%
Stirring prower(Kw)	0.025	0.4	0.12	0.12	0.12	0.12	0.12/0.75
transmitting power(Kw)	0.4	0.4	0.4	0.75	0.75	1	2.2
Part of the material in contact with the material	The standard model adopts: shell 304, 316/316L can be selected as needed, output shaft and screw 2205, gearbox, connecting body and motor connecting plate aluminum alloy surface treatment, contact material surface polished 350 mesh (Ra0.4), non-contact material surface polished 250 mesh (Ra1.2)
Voltage(V)	220	220	220	220	220	220	380

Note: The feeding amount is measured from materials with good flowability. The feeding amount may vary according to the actual material's specific gravity, flowability, and other characteristics. Please consult Zegota Technology for specific technical parameters.
Digital Weightlessness Scale Feeder High Precision 1

·FAQ
1.How long does the estimated delivery time for the product take?
Answer: It depends on the product and order quantity. Normally, a minimum order quantity order takes 15 days.
2.How to handle the installation and debugging of the product after purchasing it?
Answer:Our product comes with an instruction manual and supports video installation and debugging. The user interface supports both Chinese and English.
3.How long does the product warranty last?
Answer:We support a one-year warranty.
4.How is the after-sales service for the product?
Answer:If any problems occur during the warranty period, please contact Zegota staff.
5. Can I purchase product spare parts from your company?
Answer:Sure.Spare parts can be purchased individually.

·Brief Introduction
Zhejiang Zegota Precision Technology Co., Ltd is a team that develops and manufactures weight loss scales, providing comprehensive automation solutions to industries such as rubber, food and medicine, and chemical engineering based on leading scale and core technology. ZEGOTA highly focuses on the industry's demand for smart factories, helping customers achieve high integration, high precision, and excellent efficiency in smart factories. We provide customers with equipment automation, production equipment information collection and optimization, visual management, and factory energy consumption monitoring, while also offering customized processes.
